- 3EFFE: ALTF437, ALTF437M, ALTF437U, PRAF437, PRAF437M, PRAF437U
- AINDE: AI-90141
- AS-PL: A4111, UD02337A
- AUTOELECTRO: AEA2215
- BOSCH: 0986048541
- BOVEZ: STA0054R
- CARGO: 113537
- CASCO: CAL30134AS, CAL30134GS
- CEVAM: 4617
- DELCO: DA4524, DRA3414
- DENSO: DAN630
- EAI: 56769
- ELECTROLOG: ALT00757, ALT6580
- ELSTOCK: 28-2734
- ERA: 210019, 210237, 210348, 210355
- FIAT: 46420961, 46231693, 46231695, 46407644, 46407646, 46416343, 46419297, 46420960, 46430524, 46519138, 46530060, 46559015, 46758244, 46800157, 46800158, 46813059, 46813065, 46816031, 51700670, 51859047, 5895028, 5895033, 7715541, 7779820, 7779915
- GPARTS: GA321747M-R
- HC PARTS: CA1153IR
- HELLA: 8EL012427-041
- KRAUF: ALE1153
- KUHNER: 301153RI
- LUCAS: LRB00215, LRB215
- MAGNETI MARELLI: 063321747010, 063731153010, 63321234, 63321236, 63321280, 63321302, 63321602, 63321605, 63321747, 63321870, 943321234010, 944390900220, MAN1041, MAR5109, MRA90022
- POWERMAX: 89213102
- PSH: 505.536.065.050, 505.536.065.550
- REAL: 20104431BN, 20104431OE
- SANDO: 2030134.0, 2030134.1
- SIOM: ALT2570, ALT2570A
- STARDAX: STX100015R, STX100022, STX100022R, STX100032R, STX100266, STX100266R, STX100305, STX100305R, STX100320, STX100323, STX100323R, STX100015, STX100032
- VALEO: 200172, 436481, 440493, 443139, 746056
- WAI / TRANSPO: 23756N
- WOODAUTO: ALT12018, DENDAN630

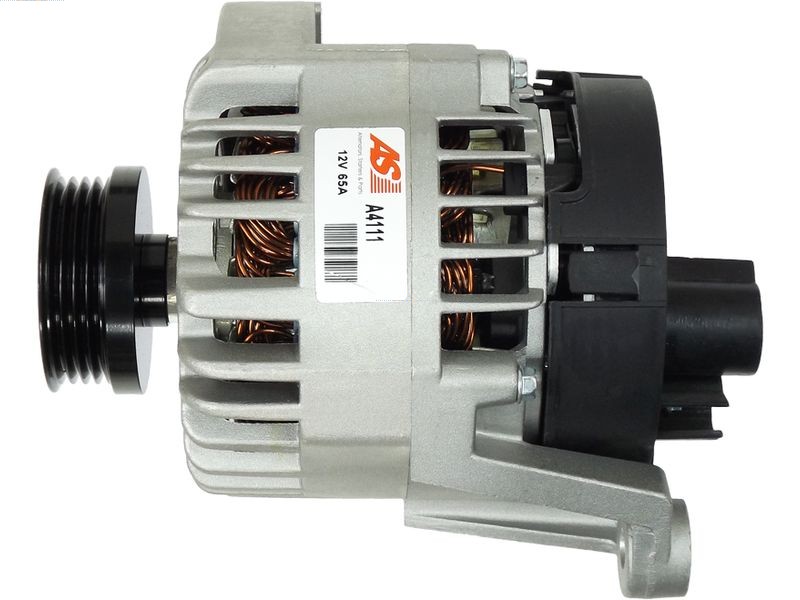

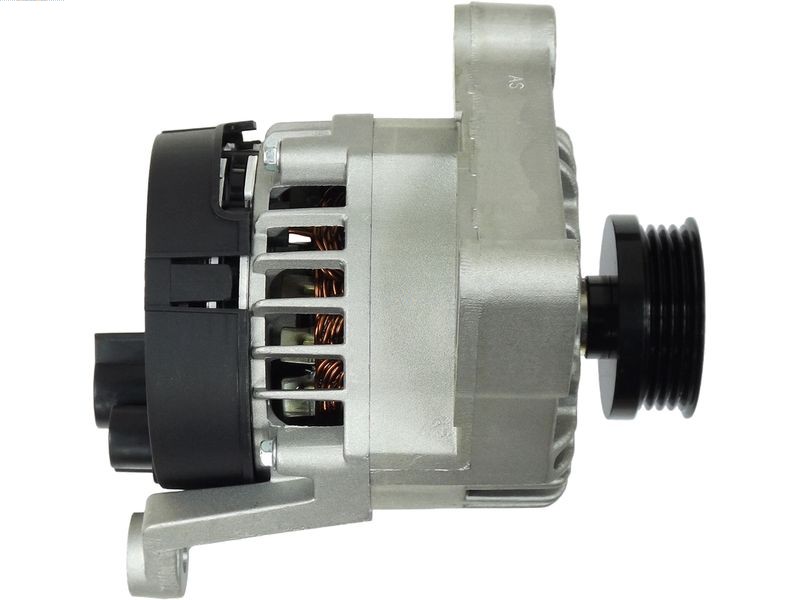

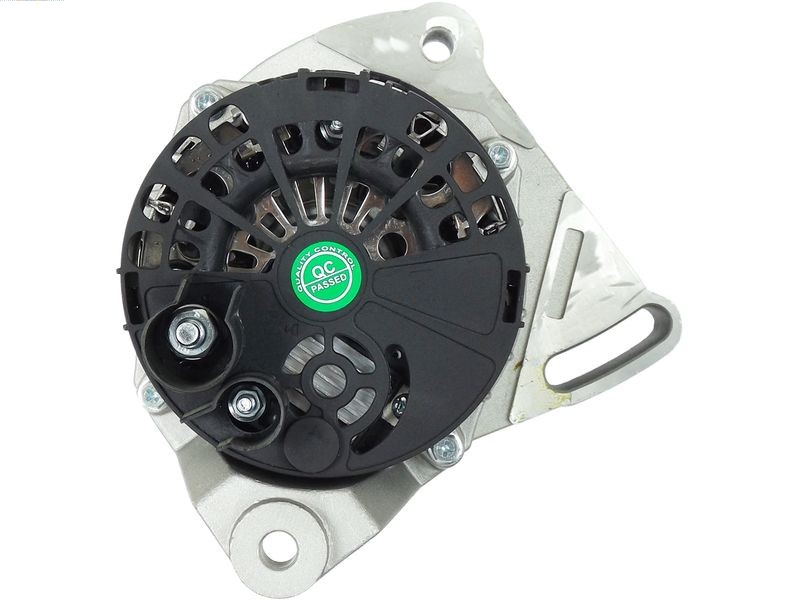

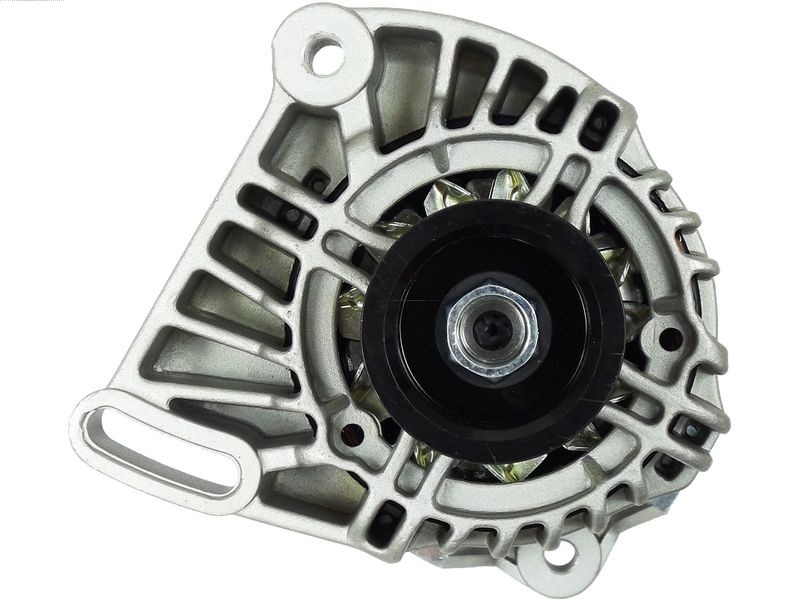

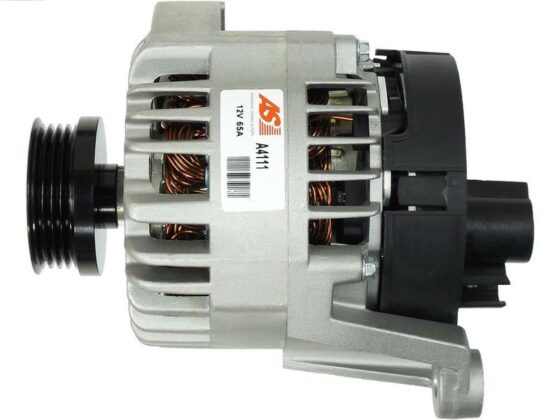

Alternator Doblo 1.2 Doblo Cargo 1.2 Palio 1.2 Punto 1.1 Punto 55 1.1 Punto 60 1
421,00 zł
10 w magazynie

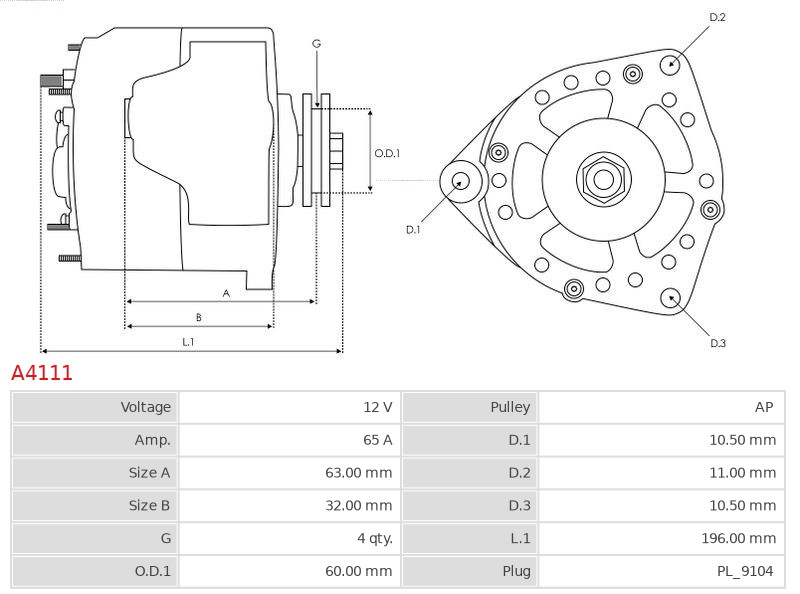

Informacje dodatkowe
| Waga | 5,006 kg |
|---|---|
| Wymiary | 26 × 19 × 19 cm |
| EAN | 5901259491661 |
| Producent | AS-PL |
| D.1 | 10.50 mm |
| D.2 | 11.00 mm |
| D.3 | 10.50 mm |
| Koło pasowe | AP |
| L.1 | 196.00 mm |
| Napięcie V | 12 V |
| Natężenie A | 65 A |
| O.D.1 | 60.00 mm |
| Plug | PL_9104 |
| Rozmiar A | 63.00 mm |
| Rozmiar B | 32.00 mm |
| G | 4 szt. |
Zastosowanie w pojazdach
| Marka | Model | Typ | Rocznik |
|---|---|---|---|
| CITROËN | JUMPY I (U6U_) 1.6 | 1580SPI | 1995 - 2000 |
| CITROËN | JUMPY I (U6U_) 1.6 | 220A2.000 | 1995 - 2000 |
| FIAT | DOBLO Box Body/MPV (223_) 1.2 (223ZXA1A) | 223A5.000 | 2001 - 2004 |
| FIAT | DOBLO MPV (119_, 223_) 1.2 (223AXA1A) | 223A5.000 | 2001 - |
| FIAT | MULTIPLA (186_) 1.6 (186AXC1A, 186BMC1A, 186BXC1A) | 182B6.000 | 2000 - 2010 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178B7.045 | 1997 - 2002 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178C4.066 | 1997 - 2002 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 188A4.000 | 1997 - 2002 |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 176A8.000 | 1998 - |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178B5.000 | 1998 - |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178E2.000 | 1998 - |
| FIAT | PALIO (178_, 171_, 371_) 1.2 | 178E2.000 | 1999 - 2000 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 | 178B5.000 | 1996 - 2004 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 (178BXZ1A) | 178E2.000 | 1999 - 2002 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 (178DYA1A, 178DXS1A) | 178C4.066 | 1997 - 2004 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.2 (178DYA1A, 178DXS1A) | 188A4.000 | 1997 - 2004 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) | 178D6.011 | 2001 - 2004 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) | 188A5.000 | 2001 - 2004 |
| FIAT | PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.6 16V (178DXD1A) | 178B3.000 | 1996 - 2001 |
| FIAT | PANDA (141_) 1100 4x4 | 176B2.000 | 1995 - 2004 |
| FIAT | PANDA (141_) 1100 4x4 | 187A1.000 | 1995 - 2004 |
| FIAT | PANDA (169_) 1.1 (169.AXA1A) | 187A1.000 | 2003 - |
| FIAT | PANDA (169_) 1.2 (169.AXB11, 169.AXB1A) | 188A4.000 | 2003 - |
| FIAT | PANDA (169_) 1.2 (169AXF2A, 169AXF1A) | 169A4.000 | 2010 - 2013 |
| FIAT | PANDA (169_) 1.2 4x4 (169.AXB2A) | 188A4.000 | 2004 - |
| FIAT | PANDA (169_) 1.2 LPG (169.AXB1A) | 188A4.000 | 2009 - |
| FIAT | PANDA (169_) 1.2 LPG (169CXF1A) | 169A4.000 | 2010 - 2013 |
| FIAT | PANDA (169_) 1.2 Natural Power (169.AXB1A) | 188A4.000 | 2007 - 2011 |
| FIAT | PANDA Hatchback Van (141_) 1.1 | 187A1.000 | 2000 - 2004 |
| FIAT | PANDA Hatchback Van (169_) 1.1 (169CXA1A) | 187A1.000 | 2004 - |
| FIAT | PANDA Hatchback Van (169_) 1.2 | 188A4.000 | 2004 - |
| FIAT | PANDA Hatchback Van (169_) 1.2 | 169A4.000 | 2010 - |
| FIAT | PANDA Hatchback Van (169_) 1.2 4x4 | 188A4.000 | 2004 - |
| FIAT | PANDA Hatchback Van (169_) 1.2 Bipower (169CXB1A) | 188A4.000 | 2004 - 2011 |
| FIAT | PANDA Hatchback Van (169_) 1.2 LPG | 188A4.000 | 2009 - |
| FIAT | PANDA Hatchback Van (169_) 1.2 LPG | 169A4.000 | 2010 - |
| FIAT | PUNTO (176_) 1.2 16V | 176B9.000 | 1997 - 1999 |
| FIAT | PUNTO (176_) 1.4 GT Turbo (176AS_) | 176B6.000 | 1996 - 1999 |
| FIAT | PUNTO (176_) 55 1.1 | 176A6.000 | 1993 - 1999 |
| FIAT | PUNTO (176_) 55 1.1 | 176B2.000 | 1993 - 1999 |
| FIAT | PUNTO (176_) 60 1.2 | 176A7.000 | 1994 - 1999 |
| FIAT | PUNTO (176_) 60 1.2 (176AP, 176AR, 176AQ, 176BB) | 176B1.000 | 1993 - 1999 |
| FIAT | PUNTO (176_) 60 1.2 (176AP, 176AR, 176AQ, 176BB) | 176B4.000 | 1993 - 1999 |
| FIAT | PUNTO (176_) 75 1.2 | 176A8.000 | 1993 - 1999 |
| FIAT | PUNTO (188_) 1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,... | 188A5.000 | 1999 - 2006 |
| FIAT | PUNTO (188_) 1.2 60 (188.030, .050, .130, .150, .230, .250) | 188A4.000 | 1999 - 2010 |
| FIAT | PUNTO (188_) 1.2 Bipower (188BXA1A) | 188A4.000 | 2001 - 2003 |
| FIAT | PUNTO (188_) 1.2 Natural Power | 188A4.000 | 2003 - 2012 |
| FIAT | PUNTO (188_) 1.2 Natural Power (188BXA1A) | 188A4.000 | 2004 - 2006 |
| FIAT | PUNTO Convertible (176_) 60 1.2 | 176A7.000 | 1994 - 2000 |
| FIAT | PUNTO Convertible (176_) 60 1.2 (176AR_, 176BR_) | 176B1.000 | 1995 - 2000 |
| FIAT | PUNTO Convertible (176_) 60 1.2 (176AR_, 176BR_) | 176B4.000 | 1995 - 2000 |
| FIAT | PUNTO Convertible (176_) 85 16V 1.2 | 176B9.000 | 1997 - 2000 |
| FIAT | PUNTO Hatchback Van (188_) 1.2 60 | 188A4.000 | 2000 - 2009 |
| FIAT | PUNTO Hatchback Van (188_) 1.2 Natural Power (188CXA1A) | 188A4.000 | 2003 - 2010 |
| FIAT | PUNTO Van (176_) 1.1 | 176B2.000 | 1996 - 2000 |
| FIAT | SEICENTO / 600 (187_) 1.1 (187AXB, 187AXB1A, 187AXC1A02) | 176B2.000 | 1998 - 2010 |
| FIAT | SEICENTO / 600 (187_) 1.1 (187AXB, 187AXB1A, 187AXC1A02) | 187A1.000 | 1998 - 2010 |
| FIAT | SEICENTO / 600 Hatchback Van (287_) 1.1 (187CXB/C) | 176B2.000 | 1998 - 2010 |
| FIAT | SIENA (178_, 172_, 372_) 1.3 | 188A5.000 | 2001 - 2009 |
| FIAT | SIENA (178_, 172_, 372_) 1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT) | 178B5.000 | 1998 - 2002 |
| FIAT | SIENA (178_, 172_, 372_) 1.3 (178CXS1AAI, 178BYA1AAT, 178CYA1AAT) | 178C4.066 | 2001 - 2012 |
| FIAT | SIENA (178_, 172_, 372_) 1.3 (178CXS1AAI, 178BYA1AAT, 178CYA1AAT) | 188A4.000 | 2001 - 2012 |
| FIAT | SIENA (178_, 172_, 372_) 1.6 16V | 178B3.000 | 1998 - 2009 |
| FIAT | STRADA Pickup (178_, 278_) 1.2 | 178B5.000 | 1999 - 2006 |
| FORD | SIERRA Turnier (BNC) 1.6 | LCS | 1982 - 1986 |
| FORD | SIERRA Turnier (BNC) 1.6 | LCT | 1982 - 1986 |
| FORD | SIERRA Turnier (BNC) 1.6 | LSD | 1982 - 1986 |
| LANCIA | Y (840_) 1.1 (840AE) | 176B2.000 | 1995 - 2003 |
| LANCIA | Y (840_) 1.2 (840AA, 840AF1A) | 188A4.000 | 1996 - 2003 |
| LANCIA | Y (840_) 1.2 (840AA, 840AF1A) | 840A3.000 | 1996 - 2003 |
| LANCIA | YPSILON (843_) 1.2 (843.AXA1A) | 188A4.000 | 2003 - 2011 |
| PEUGEOT | EXPERT Platform/Chassis (223) 1.9 TD | DHX(XUD9TE) | 1996 - 2000 |
| Marka | Model | Rok |
|---|---|---|
| FIAT | Doblo 1.2 [223A5.000] | 2001 |
| FIAT | Doblo Cargo 1.2 [223A5.000] | 2001 |
| FIAT | Palio 1.2 [176A8.000] | 1998 |
| FIAT | Palio 1.2 [178B5.000] | 1996 - 2001 |
| FIAT | Palio 1.2 [178B5.000] | 1998 |
| FIAT | Palio 1.2 [178B7.045] | 1997 - 2002 |
| FIAT | Palio 1.2 [178C4.066] | 1997 - 2002 |
| FIAT | Palio 1.2 [178C4.066] | 1997 - 2004 |
| FIAT | Palio 1.2 [178E2.000] | 1998 |
| FIAT | Palio 1.2 [178E2.000] | 1999 - 2000 |
| FIAT | Palio 1.2 [188A4.000] | 1997 - 2002 |
| FIAT | Palio 1.2 [188A4.000] | 1997 - 2004 |
| FIAT | Punto 1.1 [176B2.000] | 1996 - 2000 |
| FIAT | Punto 55 1.1 [176A6.000] | 1993 - 1999 |
| FIAT | Punto 55 1.1 [176B2.000] | 1993 - 1999 |
| FIAT | Punto 60 1.2 [176A7.000] | 1994 - 1999 |
| FIAT | Punto 60 1.2 [176A7.000] | 1994 - 2000 |
| FIAT | Punto 60 1.2 [176B1.000] | 1993 - 1999 |
| FIAT | Punto 60 1.2 [176B1.000] | 1995 - 2000 |
| FIAT | Punto 60 1.2 [176B4.000] | 1993 - 1999 |
| FIAT | Punto 60 1.2 [176B4.000] | 1995 - 2000 |
| FIAT | Punto 75 1.2 [176A8.000] | 1993 - 1999 |
| LANCIA | Y 1.2 [188A4.000] | 1996 - 2003 |
| LANCIA | Y 1.2 [840A3.000] | 1996 - 2003 |
| PEUGEOT | Expert 1.9 TD [DHX(XUD9TE)] | 1996 - 2000 |
