- AS-PL: UD101638A
- CASCO: CAL15A09GS
- CEVAM: 40322
- DELCO: DRA1601, DRA1603
- EAI: 57782
- ELSTOCK: 28-7734
- KUHNER: 555094RIV
- LUCAS: LRA04125, LRA4125
- PEUGEOT: 1611138280, 1650403780, 9678731280, 9822230780, 9831731780, 1623069280, 9822231380
- POWERMAX: 89216505
- PSH: 225.552.150.000, 225.552.150.500
- REAL: 2017990AOE
- ROLLCO: ALT2391CP
- SANDO: 2015A09.1
- SIOM: ALT17A090
- VALEO: 439934, 440678, 440845, 443028, 616828, FG15T075, FG15T117, FG15T148, FGN15T075, FGN15T148, FG15T117SV, 2616828A, 2715896A
- WAI / TRANSPO: 21662-OS
- WOODAUTO: VAL439934, VAL443028

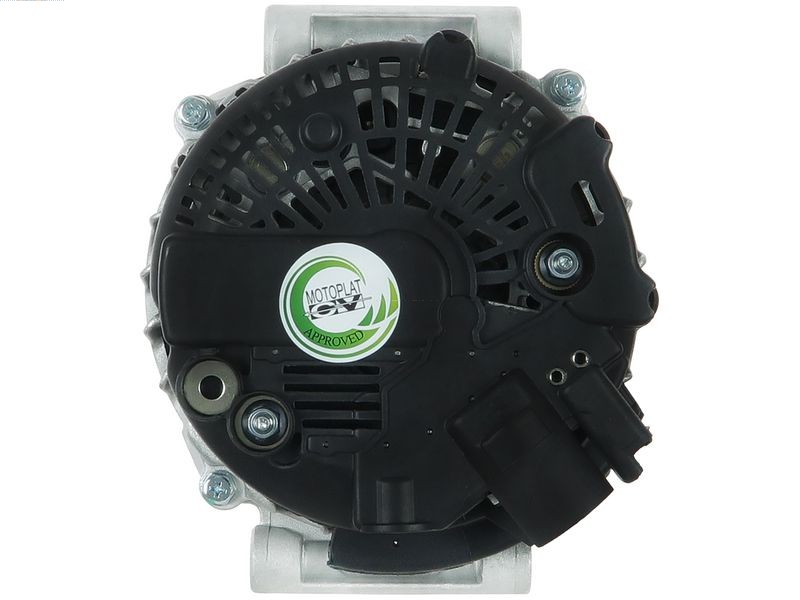

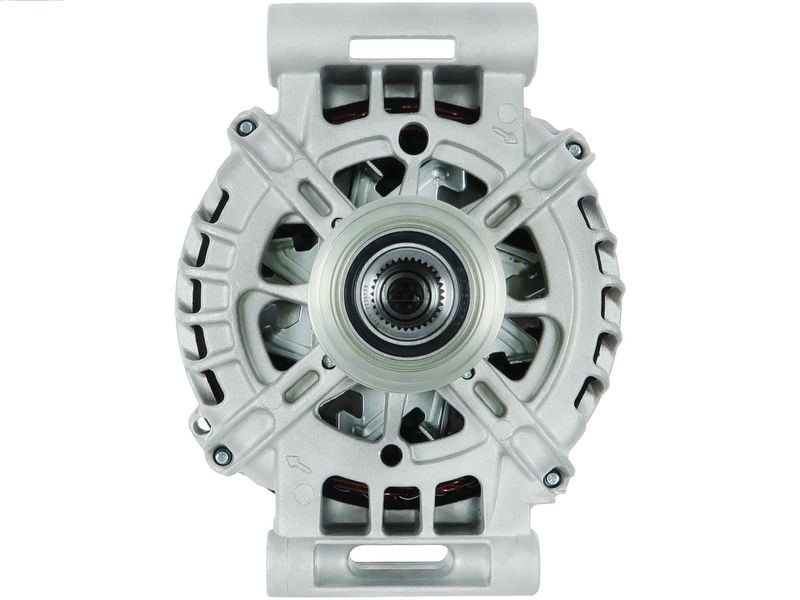

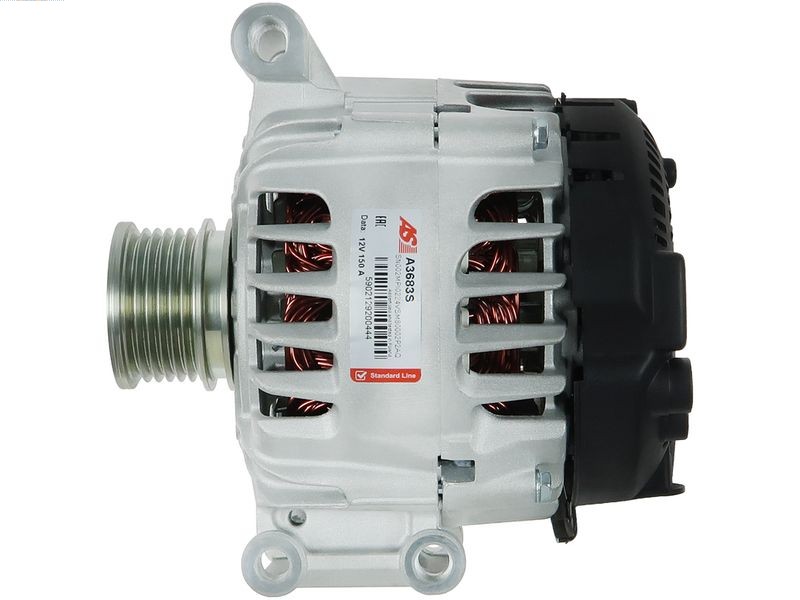

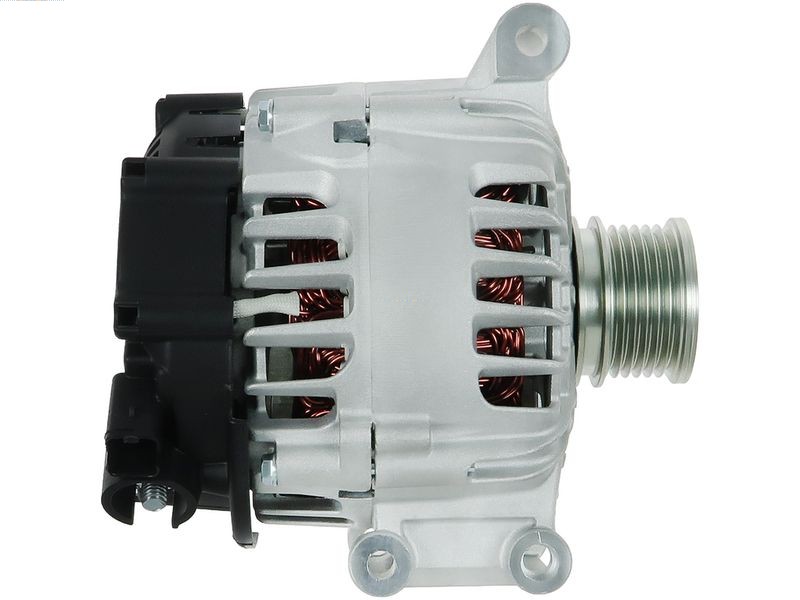

Alternator CITROEN C4 Grand Picasso 1.6 THP 165; C4 Picasso 1.6 THP 165; DS DS 4 Cross
697,00 zł
Brak w magazynie
Informacje dodatkowe

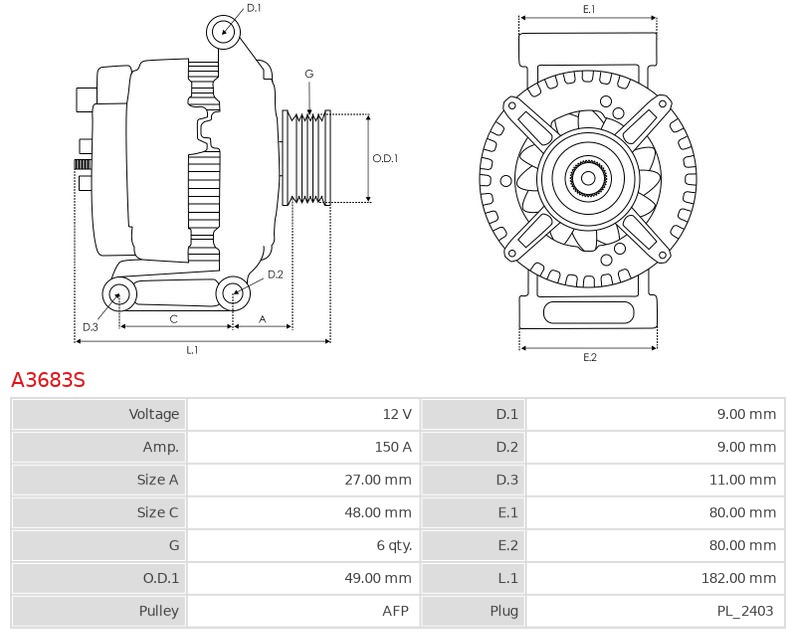

| Waga | 6,048 kg |
|---|---|
| Wymiary | 26 × 19 × 19 cm |
| Producent | AS-PL |
| EAN | 5902129200444 |
| D.1 | 9.00 mm |
| D.2 | 9.00 mm |
| D.3 | 11.00 mm |
| E.1 | 80.00 mm |
| E.2 | 80.00 mm |
| G | 6 szt. |
| Koło pasowe | AFP |
| L.1 | 182.00 mm |
| Napięcie V | 12 V |
| Natężenie A | 150 A |
| O.D.1 | 49.00 mm |
| Plug | PL_2403 |
| Rozmiar A | 27.00 mm |
| Rozmiar C | 48.00 mm |
Zastosowanie w pojazdach
| Marka | Model | Typ | Rocznik |
|---|---|---|---|
| CITROËN | C4 GRAND PICASSO II (DA_, DE_) 1.6 THP 165 | 5GZ(EP6FDT) | 2014 - |
| CITROËN | C4 PICASSO II 1.6 THP 150 | 5FX(EP6DT) | 2014 - |
| CITROËN | C4 PICASSO II 1.6 THP 165 | 5GZ(EP6FDT) | 2014 - |
| CITROËN | C4 SPACETOURER (3D_) 1.6 THP 165 | 5GZ(EP6FDT) | 2018 - |
| CITROËN | C5 AIRCROSS (A_) 1.6 PureTech 180 (A45GFR) | 5GF(EP6FADTXD) | 2018 - |
| CITROËN | C5 AIRCROSS (A_) 1.6 THP 150 (A45GXJ) | 5GX(EP6FDTMD) | 2019 - |
| CITROËN | C5 AIRCROSS (A_) 1.6 THP 165 (A45GYJ) | 5GY(EP6FDTM) | 2019 - |
| CITROËN | DS4 (NX_) 1.6 THP 165 | 5FM(EP6CDTM) | 2012 - 2015 |
| CITROËN | DS4 (NX_) 1.6 THP 165 | 5GZ(EP6FDT) | 2012 - 2015 |
| CITROËN | DS5 1.6 THP 165 Hybrid | 5GZ(EP6FDT) | 2012 - 2015 |
| CITROËN | GRAND C4 SPACETOURER (3A_, 3E_) 1.6 PureTech 180 | 5GF(EP6FADTXD) | 2018 - |
| CITROËN | GRAND C4 SPACETOURER (3A_, 3E_) 1.6 THP 165 | 5GZ(EP6FDT) | 2018 - |
| CITROËN | GRAND C4 SPACETOURER (3A_, 3E_) 1.6 THP 165 | 5GX(EP6FDTMD) | 2018 - |
| DS | DS 4 / DS 4 CROSSBACK (NX_) 1.6 THP 165 | 5GZ(EP6FDT) | 2015 - 2018 |
| DS | DS 4 / DS 4 CROSSBACK (NX_) 1.6 THP 210 | 5GM(EP6FDTX) | 2015 - 2018 |
| DS | DS 5 (KF_) 1.6 THP 165 (KF5GZT) | 5GZ(EP6FDT) | 2015 - 2018 |
| DS | DS 5 (KF_) 1.6 THP 210 | 5GM(EP6FDTX) | 2015 - 2018 |
| DS | DS 7 (J4_, JC_) PureTech 180 (J45GFU) | 5GF(EP6FADTXD) | 2022 - |
| DS | DS 7 (J4_, JC_) PureTech 225 (J45GGU) | 5GG(EP6FADTX) | 2022 - |
| DS | DS 7 Crossback (J4_, JR_, JC_) 1.6 PureTech 180 (J45GFR) | 5GF(EP6FADTXD) | 2018 - |
| DS | DS 7 Crossback (J4_, JR_, JC_) 1.6 PureTech 225 (J45GCR, J45GGR) | 5GC(EP6FADTX) | 2017 - 2022 |
| DS | DS 7 Crossback (J4_, JR_, JC_) 1.6 PureTech 225 (J45GCR, J45GGR) | 5GG(EP6FADTX) | 2017 - 2022 |
| OPEL | GRANDLAND / GRANDLAND X (A18, P1UO) 1.6 Turbo (75) | D16XHT(EP6FADTXD) | 2018 - 2021 |
| PEUGEOT | 208 I (CA_, CC_) 1.6 GTi | 5GR(EP6FDTX) | 2014 - 2019 |
| PEUGEOT | 3008 I MPV (0U_) 1.6 Turbo | 5GZ(EP6FDT) | 2014 - 2016 |
| PEUGEOT | 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 PureTech 180 (M45GFR, M45GFU) | 5GF(EP6FADTXD) | 2018 - |
| PEUGEOT | 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 THP 165 (M45GYW, M45GZW, M45GYV) | 5GY(EP6FDTM) | 2016 - |
| PEUGEOT | 3008 II SUV (MC_, MR_, MJ_, M4_) 1.6 THP 165 (M45GYW, M45GZW, M45GYV) | 5GZ(EP6FDT) | 2016 - |
| PEUGEOT | 3008 II SUV (MC_, MR_, MJ_, M4_) Hybrid4 (M45GBU) | 5GB(EP6FADTXHPA) | 2019 - |
| PEUGEOT | 3008 II SUV (MC_, MR_, MJ_, M4_) Hybrid4 (M45GBU) | 5GB(EP6FADTXHPP) | 2019 - |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GT 205 | 5GT(EP6FDTX) | 2014 - 2021 |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GTi | 5GP(EP6FDTR) | 2015 - 2021 |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GTi (L35GNH) | 5GN(EP6FDTR) | 2015 - 2021 |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 GTi PureTech 263 (L3EGXP) | EGX(EP6FADTR) | 2018 - 2021 |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 PureTech 225 | GGR(EP6FADTX) | 2018 - 2021 |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 THP 150 | 5GX(EP6FDTMD) | 2014 - 2021 |
| PEUGEOT | 308 II (LB_, LP_, LW_, LH_, L3_) 1.6 THP 163 | 5FM(EP6CDTM) | 2014 - 2021 |
| PEUGEOT | 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 GT 205 | 5GT(EP6FDTX) | 2015 - 2021 |
| PEUGEOT | 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 PureTech 225 (L45GGR) | 5GG(EP6FADTX) | 2018 - 2021 |
| PEUGEOT | 308 SW II (LC_, LJ_, LR_, LX_, L4_) 1.6 THP 150 (L45GXA) | 5GX(EP6FDTMD) | 2014 - 2021 |
| PEUGEOT | 5008 (0U_, 0E_) 1.6 THP 163 | 5GZ(EP6FDT) | 2012 - 2017 |
| PEUGEOT | 5008 (0U_, 0E_) 1.6 THP 165 | 5GZ(EP6FDT) | 2012 - 2017 |
| PEUGEOT | 5008 II (MC_, MJ_, MR_, M4_) 1.6 PureTech 180 (M45GFR) | 5GF(EP6FADTXD) | 2018 - |
| PEUGEOT | 5008 II (MC_, MJ_, MR_, M4_) 1.6 THP 110 (M45GXV, M45GXW) | 5GX(EP6FDTMD) | 2018 - |
| PEUGEOT | 5008 II (MC_, MJ_, MR_, M4_) 1.6 THP 165 (M45GZW, M45GYW, M45GYV) | 5GY(EP6FDTM) | 2016 - |
| PEUGEOT | 5008 II (MC_, MJ_, MR_, M4_) 1.6 THP 165 (M45GZW, M45GYW, M45GYV) | 5GZ(EP6FDT) | 2016 - |
| PEUGEOT | 508 I (8D_) 1.6 THP | 5GZ(EP6FDT) | 2011 - 2018 |
| PEUGEOT | 508 I (8D_) 1.6 THP | 5GZ(EP6FDT) | 2012 - 2018 |
| PEUGEOT | 508 II (FB_, FH_, F3_) 1.6 PureTech 180 (F35GFR) | 5GF(EP6FADTXD) | 2018 - |
| PEUGEOT | 508 II (FB_, FH_, F3_) 1.6 PureTech 225 (F35GGR) | 5GG(EP6FADTX) | 2018 - |
| PEUGEOT | 508 II (FB_, FH_, F3_) 1.6 THP 150 (F35GXV) | 5GX(EP6FDTMD) | 2018 - |
| PEUGEOT | 508 II (FB_, FH_, F3_) 1.6 THP 165 (F35GYV) | 5GY(EP6FDTM) | 2018 - |
| PEUGEOT | 508 SW I (8E_) 1.6 | 5GZ(EP6FDT) | 2012 - 2018 |
| PEUGEOT | 508 SW II (FC_, FJ_, F4_) 1.6 PureTech 180 | GFR(EP6FADTXD) | 2018 - |
| PEUGEOT | 508 SW II (FC_, FJ_, F4_) 1.6 PureTech 225 (F45GGR) | GCR(EP6FADTX) | 2018 - |
| PEUGEOT | 508 SW II (FC_, FJ_, F4_) 1.6 THP 165 (F45GYV) | 5GY(EP6FDTM) | 2018 - |
| Marka | Model | Rok |
|---|---|---|
| CITROEN | C4 Grand Picasso 1.6 THP 165 [5GZ(EP6FDT)] | 2014 |
| CITROEN | C4 Picasso 1.6 THP 165 [5GZ(EP6FDT)] | 2014 |
| DS | DS 4 Crossback 1.6 THP 165 [5GZ(EP6FDT)] | 2015 - 2018 |
| DS | DS 4 Crossback 1.6 THP 210 [5GM(EP6FDTX)] | 2015 - 2018 |
| DS | DS 5 1.6 THP 165 [5GZ(EP6FDT)] | 2015 - 2018 |
| DS | DS 5 1.6 THP 210 [5GM(EP6FDTX)] | 2015 - 2018 |
| PEUGEOT | 3008 1.6 THP 165 [5GY(EP6FDTM)] | 2016 |
| PEUGEOT | 3008 1.6 THP 165 [5GZ(EP6FDT)] | 2016 |
| PEUGEOT | 3008 1.6 Turbo [5GZ(EP6FDT)] | 2014 - 2016 |
| PEUGEOT | 308 1.6 GT 205 [5GT(EP6FDTX)] | 2014 - 2021 |
| PEUGEOT | 308 SW 1.6 GT 205 [5GT(EP6FDTX)] | 2015 - 2021 |
| PEUGEOT | 5008 1.6 THP 163 [5GZ(EP6FDT)] | 2012 - 2017 |
| PEUGEOT | 5008 1.6 THP 165 [5GY(EP6FDTM)] | 2016 |
| PEUGEOT | 5008 1.6 THP 165 [5GZ(EP6FDT)] | 2012 - 2017 |
| PEUGEOT | 5008 1.6 THP 165 [5GZ(EP6FDT)] | 2016 |
| PEUGEOT | 508 1.6 THP [5GZ(EP6FDT)] | 2011 - 2018 |
| PEUGEOT | 508 1.6 THP [5GZ(EP6FDT)] | 2012 - 2018 |
